WeaveGeo编织结构建模模块

models and generates woven structures
for use in filtration

WeaveGeo is the module for the design of technical textiles for many industries (automotive, medical, protective clothing, filtration...). With WeaveGeo, the computer design and optimization of custom technical textiles is done in a matter of minutes. For this, the relevant woven fabric parameters are determined mathematically, and then visualized, in order to enact the subsequent optimization process by means of Computational Fluid Dynamics(CFD)-simulation in real time. So within a few days, the user can calculate the properties of many models and already modify the models to fit a concrete application and address design issues.

Directly on these geometry models, material properties can be calculated using other GeoDict modules, e.g. PoroDict, ConductoDict, FlowDict, ElastoDict, DiffuDict or FilterDict. For example, pore-size distribution, flow resistivity (permeability, pressure drop), effective thermal and electrical conductivity, effective elasticity, effective diffusion, filter efficency, filter capacity, and many more.

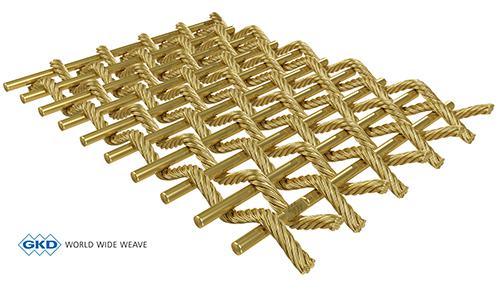

                                                                Architectural mesh, generated with GeoDict                    Multifilament weave modeled with overlapping filaments                                                                                                                           generated with WeaveGeo

Dewatering felt constructed with a Monofil Plain Weave (a) and a Random Multifil Plain Weave (b) generated withWeaveGeo, and fibrous structures (c), generated with FiberGeo, needled into it.
